Material: Lithium ion ternary positive electrode, requiring the rotary valve to support quick disassembly and cleaning of the sliding rod, completely prohibiting copper and zinc, and material contact with ceramic materials. Valves require extremely high sealing performance, with dust leakage not exceeding 0.01mg/m 3 and a production capacity of 2-3t/h.

　　Materials: Graphite, 304 and lined ceramic, with a specific gravity of 0.3-1.2g/cm 3, DN200. flow rate requirement: ≥ 3t/h, material SUS304. copper and zinc prohibited, sliding rod rotary valve, detachable and washable, airtight sealing requirement.

　　Materials: white sugar powder and brown sugar, food grade 304 stainless steel, sliding rod rotary valve with a diameter of 300. Used for positive pressure conveying, airtight seal, to be cleaned, with a discharge capacity of 1.5T/h.

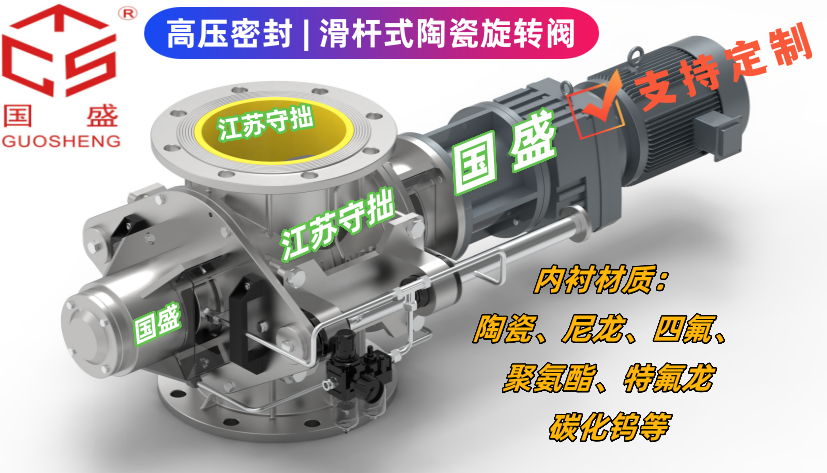

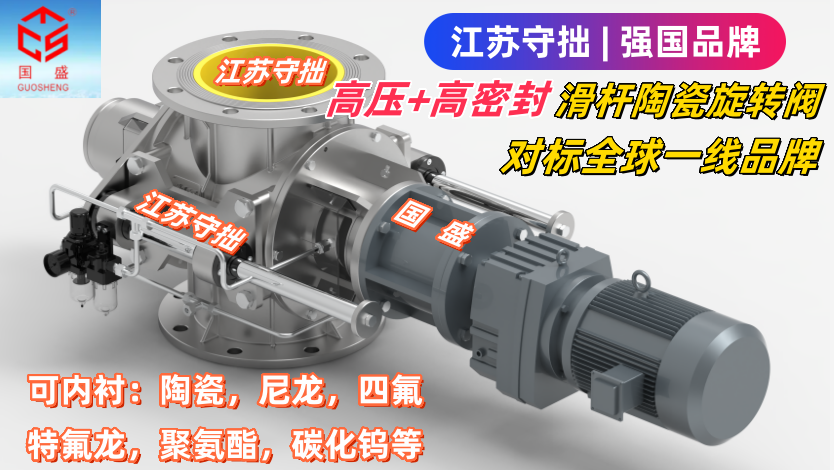

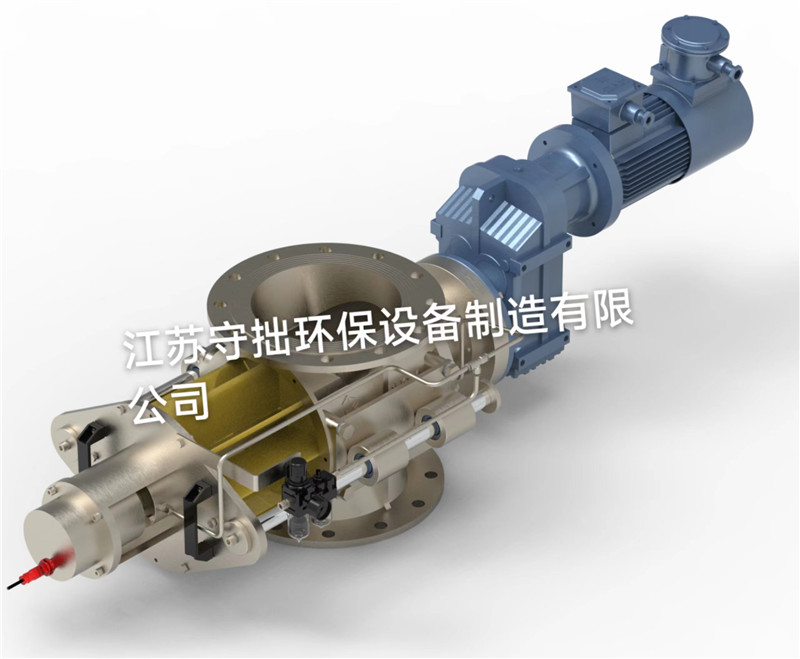

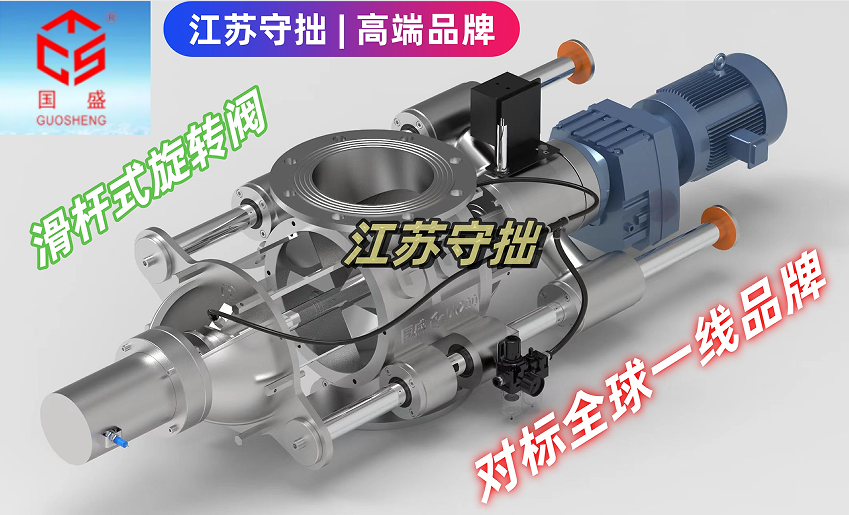

　　滑桿式旋轉閥：

　　主要結構：外殼(ke)金屬;物料(liao)接(jie)觸部(bu)分：可內襯陶(tao)瓷(ci)、尼(ni)龍(long)、四氟、特氟龍(long)、鈦合金、鋁(lv)合金、不(bu)銹鋼。

　　主要用于輸送(song)鋰(li)電池正極材料(liao)、磷酸鐵(tie)鋰(li)、三元材料(liao)、化(hua)工、制藥(yao)、食(shi)品原料(liao)等。

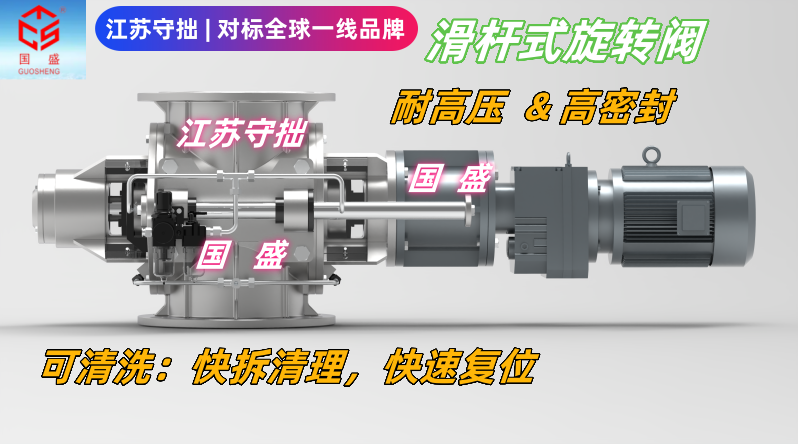

　　特點：物(wu)料粘接設備，可以快(kuai)速清理，快(kuai)速復位。

　　穩定性優于其他快拆式閥(fa)門，可原地抽出轉子。

       本產品可完全對(dui)標國外品牌的(de)滑桿清洗型(xing)。

　　江蘇守拙主要定制高端旋轉閥：超級工程/重大項目/科研項目定制旋轉閥。【電話/微信咨詢：陳經理18068546632】

　　部分選用滑桿式旋轉閥案例：

　　物(wu)料：鋰電三元正(zheng)極(ji)，要求旋轉閥支持滑(hua)桿快拆清理，全面禁銅鋅，物(wu)料接(jie)觸(chu)陶瓷材質。閥門(men)對密(mi)封性(xing)要求極(ji)高，粉塵(chen)泄(xie)漏量(liang)不大于0.01mg/m3，產能2~3t/h。

　　物(wu)料：石墨，304和(he)內襯陶瓷(ci)，物(wu)料堆積比重0.3~1.2g/㎝3，DN200.流量(liang)要求(qiu)：≥3t/h，材質SUS304.禁(jin)銅禁(jin)鋅(xin)，滑桿式旋(xuan)轉(zhuan)閥，可拆卸(xie)可清(qing)洗，氣密封(feng)要求(qiu)。

　　物(wu)料：白糖粉(fen)和紅糖，食品級304不銹鋼，滑桿旋轉閥(fa)口徑300.正壓輸(shu)送用，氣(qi)密封，要清(qing)洗型，卸料量1.5T/h。

　　卸料關(guan)風(feng)機：物料是淀(dian)粉(fen)，4-5m3/h，滑桿式(shi)清(qing)洗型關(guan)風(feng)機，電機粉(fen)塵氣(qi)體復(fu)合(he)型防(fang)爆(bao)，內外拋光(guang)304.氣(qi)密封(feng)GSB-10/DN250.N=1.5kW，ExdIIBT4/ExtIIIBT130℃防(fang)護級(ji)別:IP65法蘭:PL250(B)-10.

　　食品(pin)級旋轉下(xia)料(liao)(liao)閥(快(kuai)拆易清洗旋轉閥)，尺寸DN200.物料(liao)(liao)接觸部(bu)分材(cai)質為食用級SUS304.變頻電機(ji)，粉塵防爆(bao) ，物料(liao)(liao)名稱：麥芽(ya)糖醇，顆粒(li)物，40℃，物料(liao)(liao)含水 <1%，物料(liao)(liao)粒(li)度(du) 10目，堆積(ji)密度(du)(g/cm3) 0.8.

　　便攜(xie)式旋轉下料(liao)閥(fa)(滑動桿旋轉閥(fa)接口DN200)2噸/小時，常溫糖(tang)粉(fen)，0.5毫米顆粒狀，拋光0.6-0.8.附加(jia)條件：整機304材質，粉(fen)塵(chen)防爆，電機二級能效(xiao)。

　　輸(shu)送(song)物料：顆粒食用鹽，輸(shu)送(song)量 5T/h，滑桿快拆式，材質304不銹鋼(gang)，法蘭標準GB，SEW減速(su)機;正壓風(feng)力輸(shu)送(song)使用;輸(shu)送(song)設計(ji)壓力：50Kpa。

　　鎖風(feng)快拆(chai)式：輸送能力>7.5t/h，變頻可調，輸送物料(liao)為電(dian)石粉塵，入料(liao)側(ce)(閥(fa)(fa)上)壓(ya)(ya)力為正(zheng)壓(ya)(ya)(20kPa)，排料(liao)側(ce)(閥(fa)(fa)下(xia))為常壓(ya)(ya)，鎖風(feng)閥(fa)(fa)軸封(feng)處配(pei)備氮(dan)氣(qi)密封(feng)裝(zhuang)置(zhi)，不得向(xiang)外漏(lou)氣(qi)漏(lou)粉塵，氮(dan)氣(qi)壓(ya)(ya)力0.2MPa，鎖風(feng)閥(fa)(fa)應為快拆(chai)結構，便于(yu)在(zai)內部(bu)卡(ka)料(liao)時(shi)打開(kai)側(ce)蓋，取出轉子閥(fa)(fa)板進(jin)行清理;電(dian)動(dong)(dong)機與(yu)減(jian)速(su)機采(cai)用直連(lian)傳動(dong)(dong)，減(jian)速(su)機與(yu)閥(fa)(fa)軸采(cai)用直連(lian)傳動(dong)(dong);電(dian)動(dong)(dong)機電(dian)壓(ya)(ya)380V，防爆等級(ji)需滿足(zu)ExdIICT4和ExdIIIBT130℃，防護(hu)等級(ji)IP55.絕緣等級(ji)F級(ji)，二(er)級(ji)能效(xiao)。

　　滑杄式卸(xie)料器，304材質，產量: 1.2噸/小時，法蘭進/出(chu)尺(chi)寸(cun)：內徑320毫米，外徑450毫米(12個孔)來自氣旋的粉類產品分割(ge)器。

　　物(wu)(wu)料：聚合物(wu)(wu)顆粒，粒徑≤18目，含水分，可(ke)能會(hui)結塊，材質316L，投料口直徑≤15cm，輸送流(liu)量0-40kg/min，流(liu)量精度0.5kg/min，附(fu)著料如何清洗，耐腐蝕，變頻電機，可(ke)調轉速(su)，物(wu)(wu)料潔凈(jing)度要求較(jiao)高，輸送過程中(zhong)不能引入其他雜質。

　　滑桿(gan)清洗型旋轉卸料閥(拉桿(gan)快拆(chai))，配備功率1.5KW,材(cai)質304.轉速(su)24r/min,每轉體(ti)積4.8L,輸送量1600kg/h,配備減速(su)機為SEW,密封方(fang)式氣(qi)密封，電機與減速(su)機方(fang)式為齒輪(lun)連(lian)接。符合(he)食品安全要求(qiu)(衛生級，無死(si)角)。物(wu)料介(jie)質:酵母細粉，介(jie)質密度500-600kg/m3.L=340mm。

　　旋轉閥(fa)，葉(xie)輪聚四氟乙烯的材質(zhi)，滑桿/快拆式，輸送改性塑(su)料，用于粉體下料，尺(chi)寸(cun)DN350.

        《掃二維碼-添加 陳經理(li) 微(wei)信(xin)-咨(zi)詢滑桿(gan)式旋轉閥(fa)》

　　Food grade rotary feeding valve (quick detachable and easy to clean rotary valve), size DN200. material contact part made of edible grade SUS304. variable frequency motor, dust explosion-proof, material name: maltitol, particulate matter, 40 ℃, material moisture content<1%, material particle size 10 mesh, bulk density (g/cm 3) 0.8.

　　Material conveying: granular edible salt, conveying capacity 5T/h, sliding rod quick release type, material 304 stainless steel, flange standard GB, SEW reducer; Positive pressure wind power transmission is used; Delivery design pressure: 50Kpa.

　　Sliding rod cleaning type rotary discharge valve (pull rod quick release), equipped with a power of 1.5KW, material of 304. speed of 24r/min, volume of 4.8L per revolution, conveying capacity of 1600kg/h, equipped with SEW reducer, sealing method of gas seal, motor and reducer connected by gear. Meets food safety requirements (hygiene grade, no dead corners). Material medium: yeast powder, medium density 500-600kg/m3. L=340mm.

　　Lock air quick release type: conveying capacity>7.5t/h, adjustable frequency conversion, conveying material for calcium carbide dust, positive pressure (20kPa) on the feeding side (above the valve), and atmospheric pressure on the discharging side (below the valve). The lock air valve shaft seal is equipped with a nitrogen sealing device to prevent air leakage and dust leakage to the outside. The nitrogen pressure is 0.2MPa. The lock air valve should be a quick release structure to facilitate opening the side cover and removing the rotor valve plate for cleaning when clamping materials internally; The electric motor and reducer adopt direct transmission, and the reducer and valve shaft adopt direct transmission; The voltage of the motor is 380V, and the explosion-proof rating must meet ExdIICT4 and ExdIIIBT130 ℃, with a protection level of IP55. insulation level of F, and second level energy efficiency.
