High-temperature resistant water-cooled rotary valve, ZGS-F-DN150. material in contact with the material: 310S, chain drive, discharge capacity of 0.8 cubic meters/h, feed temperature of 1000 degrees (max), material density of approximately 700kg/m3, rated material conveying capacity of 50~100kg/h (conveying capacity adjustable via frequency conversion, 24-hour continuous operation). Valve body surface coating: silicone high-temperature aluminum powder paint, paint dry film thickness of 60um, shaft sealing form: pure graphite packing seal, reducer: Tongli R47-29.88-0.75. infinitely variable speed adjustment from 1 to 7 times.

　　High-temperature resistant star-shaped discharger: DN500 PN10. L=680mm, conveying material: iron powder, shell and rotor material: stainless steel, rotor plate thickness: 8mm, high temperature resistance above 500 degrees. Reducer: GRF89-B4-4P-41.92-M1-D350-ZPIEC, motor power: 4W, explosion-proof grade: ExdIICT4. energy efficiency: Class I, protection grade: IP55. insulation grade: F.

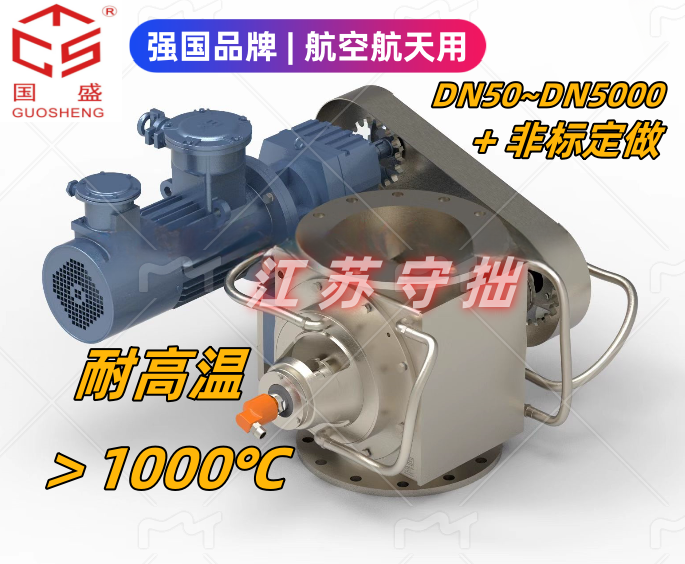

　　ZGS耐高溫旋轉閥系列旋轉閥卸料(liao)閥，主要用于鍋爐(lu)、火力(li)發電、鋰電、化工等行(xing)業(ye)，本產(chan)品精(jing)選耐高溫軸(zhou)承(cheng)，箱體葉輪軸(zhou)承(cheng)座(zuo)采用循環水冷卻，能承(cheng)受高溫。本系列產(chan)品也可根(gen)據用戶特殊要求定(ding)制技術(shu)參數。

　　適用于溫度過高的(de)物料(liao)，很好的(de)降溫。

　　閥體：采用整(zheng)體(ti)澆鑄于(yu)不(bu)銹鋼全(quan)面通水降溫。

　　端蓋采用全面通(tong)水降溫，避免軸承傳遞高溫。

　　葉輪主軸采用全面通水降溫，避(bi)免(mian)高溫形(xing)變，影響同心度。

　　耐高溫≤1000℃為(wei)常規品，>1300℃ 可按需定(ding)制。

　　江蘇守拙主要定制高端旋轉閥：超級工程/重大項目/科研項目定制旋轉閥。【電話/微信咨詢：陳經理18068546632】

       部分選用耐高溫高壓旋轉閥/水冷式旋轉閥案例：

　　耐高(gao)溫水冷旋轉閥，ZGS-F-DN150.物(wu)料(liao)接(jie)觸(chu)材質：310S，鏈條傳動，卸料(liao)量0.8立方米/h，進料(liao)溫度1000度(max)物(wu)料(liao)密度約700kg/m3，物(wu)料(liao)額定輸送量50~100kg/h(輸送量變(bian)頻可調，24h連(lian)續運行)閥體(ti)表面噴涂(tu)：有機(ji)硅高(gao)溫鋁粉漆，油(you)漆干膜厚度60um，軸密封形式：純石墨盤根密封，減速(su)(su)機(ji)：通(tong)力R47-29.88-0.75.無極變(bian)速(su)(su)1-7倍調速(su)(su)。

　　介質(zhi)為鈦(tai)白粉硬度(du)高(gao)(gao)，溫度(du)600度(du)，還(huan)有吸(xi)附性強，需求耐(nai)高(gao)(gao)溫耐(nai)磨鈦(tai)白粉。

　　物料鐵紅1000~1100℃，有些酸(suan)性(xing)物質(硫(liu)酸(suan)鹽(yan)分解后(hou))要(yao)求耐(nai)(nai)腐蝕耐(nai)(nai)高溫，旋轉(zhuan)閥口徑DN200.要(yao)求密封(feng)性(xing)能好，316L材質，防爆(bao)電機。

　　耐(nai)高溫星型卸料(liao)器：DN500 PN10  L=680mm 輸送物料(liao)鐵粉(fen)，外殼(ke)和轉子材質:不(bu)銹鋼 轉子板材厚(hou)度:8mm 耐(nai)高溫500度以上。減速(su)機:GRF89-B4-4P-41.92-M1-D350-ZPIEC 電(dian)機功率:4W防(fang)爆等(deng)級(ji):ExdIICT4.能(neng)效:一級(ji)防(fang)護等(deng)級(ji):IP55絕緣(yuan)等(deng)級(ji):F。

　　替(ti)代科倍隆Coperion，水泥行業用ZRD 630.1-172-GC-DP1  1bar，450℃。

　　替代新加坡rotolok品牌RV7322系(xi)列，耐高溫300℃的粉(fen)塵(chen)下料旋轉閥，0.5m3/h，減速機SEW。

　　額定卸料量:36m3/h，介(jie)質特性(xing):物料名(ming)稱:粉體(ti)、顆粒、塊(kuai)狀物;粒度:<3 mm;推積密(mi)(mi)度:800 kg/m3，法蘭標準D250 PH6.工作(zuo)溫(wen)(wen)度:600℃(根(gen)(gen)據(ju)介(jie)質特性(xing)選擇耐高溫(wen)(wen)或(huo)低溫(wen)(wen)材料)。工作(zuo)壓(ya)力(li):負壓(ya)工況:≥0.3MPa(需(xu)滿(man)足系統氣密(mi)(mi)要求(qiu))。密(mi)(mi)封(feng)性(xing):在額定壓(ya)力(li)下，采用(yong)迷宮式密(mi)(mi)封(feng)、填料密(mi)(mi)封(feng)或(huo)氣密(mi)(mi)封(feng)。耐磨性(xing):轉子、殼體(ti)等易(yi)磨損(sun)部件采用(yong)耐磨材料(如高鉻鑄(zhu)鐵、陶瓷涂層)。噪(zao)音控制:運行噪(zao)音<30dB(距離設備1m處測里)，連續運行時間:≥6000小時/年，年故障(zhang)率≤1%。殼體(ti):采用(yong)整體(ti)鑄(zhu)造(zao)或(huo)焊接結構，內壁光滑無(wu)死角，便于清潔與維護。閥體(ti)材質高鉻合金鑄(zhu)鋼 符合GB/T700或(huo)GB/T24511標準，表面噴砂處理或(huo)拋光。密(mi)(mi)封(feng)件: 聚四氟乙(yi)烯、高溫(wen)(wen)鎳絲盤(pan)根(gen)(gen)、芳綸復合盤(pan)根(gen)(gen)。

　　火力發電廠(chang)在(zai)省煤器出口、SCR脫硝入口段(duan)(duan)，抽(chou)取部分煙氣進(jin)行高溫(wen)煙氣的(de)除塵(chen)。需要在(zai)儲灰緩沖(chong)罐下(xia)加裝正壓(ya)稀相(xiang)氣力輸(shu)(shu)(shu)送(song)系統。煙氣溫(wen)度(du)(du)：在(zai)300∽500℃范圍內;輸(shu)(shu)(shu)送(song)介質：煙氣中(zhong)的(de)粉煤灰;輸(shu)(shu)(shu)送(song)能(neng)力：輸(shu)(shu)(shu)送(song)容積0.7∽2m3/h，按(an)不小于2m3/h設計選型;輸(shu)(shu)(shu)送(song)粉煤灰的(de)重量約(yue)1600kg/h。輸(shu)(shu)(shu)送(song)管道長度(du)(du)：直管段(duan)(duan)≤5m;輸(shu)(shu)(shu)送(song)抬升(sheng)高度(du)(du)：0m;(按(an)2m考慮)。

　　DN200.高度400mm ，輸送物料(liao)爐(lu)渣，溫度1000度，水冷式耐高溫旋(xuan)轉(zhuan)閥。

　　介質是鋰(li)電池三元前驅體，電池材料溫(wen)度(du)150°，最(zui)高溫(wen)度(du)150°內襯0.3mm氧化鋯陶瓷，DN150.

　　物(wu)料(liao)：生活(huo)垃圾，要求(qiu)耐(nai)高溫(wen)，耐(nai)高壓，高溫(wen)1000度~1100度，壓力3公斤，密封星(xing)型卸料(liao)閥要求(qiu)進(jin)料(liao)同時不漏氣(qi)不卡料(liao)。

       《掃二維(wei)碼(ma)-添加 陳經(jing)理 微信-咨詢耐高(gao)溫高(gao)壓旋轉閥(fa)(fa)/水冷式旋轉閥(fa)(fa)》

　　Replace Coperion with ZRD 630.1-172-GC-DP1 for the cement industry, at 1 bar and 450℃.

　　Replacement for Singapore Rotolok brand RV7322 series, high temperature resistant (300℃) rotary valve for dust feeding, 0.5m3/h, reducer SEW.

　　DN200. height 400mm, conveying material slag, temperature 1000 degrees, water-cooled high-temperature resistant rotary valve.

　　The medium is a lithium battery ternary precursor, with the battery material temperature at 150°C and a maximum temperature of 150°C. It is lined with 0.3mm zirconia ceramic, DN150.

　　Material: household waste, requiring high temperature resistance, high pressure resistance, with a temperature range of 1000°C to 1100°C and a pressure of 3 kg. The sealed star-shaped discharge valve is required to ensure no air leakage and no material jamming during feeding.

　　The thermal power plant extracts a portion of flue gas for high-temperature dust removal at the outlet of the economizer and the inlet section of the SCR denitration system. A positive pressure dilute-phase pneumatic conveying system needs to be installed under the ash storage buffer tank. Flue gas temperature: within the range of 300∽500℃; conveying medium: pulverized coal ash in the flue gas; conveying capacity: conveying volume of 0.7∽2m3/h, designed and selected based on a minimum of 2m3/h; weight of pulverized coal ash conveyed is approximately 1600kg/h. Length of conveying pipeline: straight pipe section ≤5m; conveying lift height: 0m; (considered as 2m).
