Lithium iron phosphate Phase II, auxiliary material feeding rotary valve: Auxiliary material density: 0.6g/cm3. 1. Material: Valve body 304. inner surface sprayed with ceramic, valve core entirely made of polyoxymethylene (POM) material, equipped with air seal; 2. Motor: Variable frequency regulation; 3. Supporting air source solenoid valve, air source hose. Feeding rate: 2t/h. Carbon source 1: 0.8g/cm3, Carbon source 2: 0.45g/cm3, Carbon source 3: 0.5g/cm3, material valve body 304. inner surface sprayed with ceramic, valve core entirely made of polyoxymethylene (POM) material, equipped with air seal; Motor: Variable frequency regulation; supporting air source solenoid valve, air source hose. Feeding rate: 4t/h.

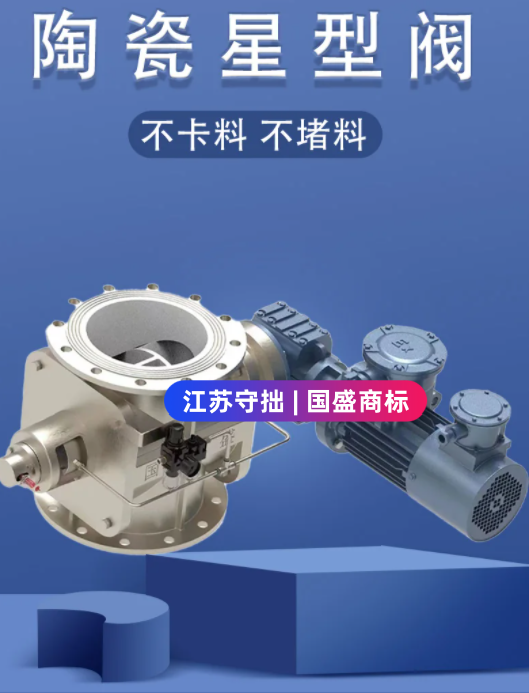

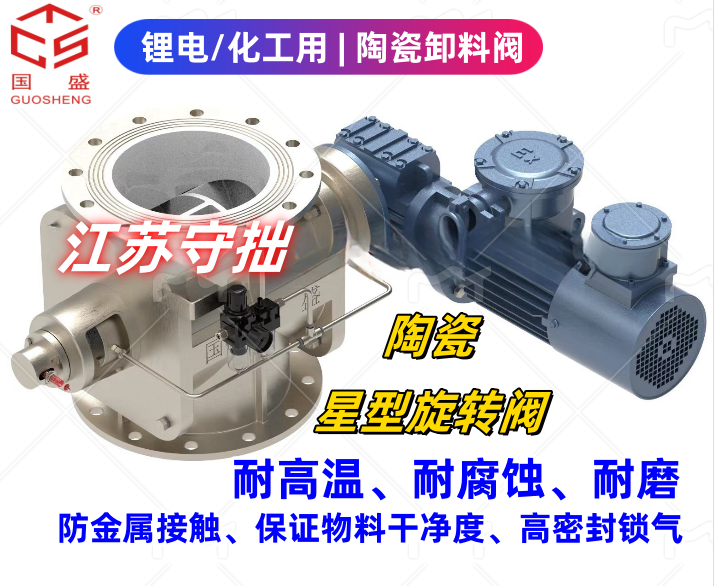

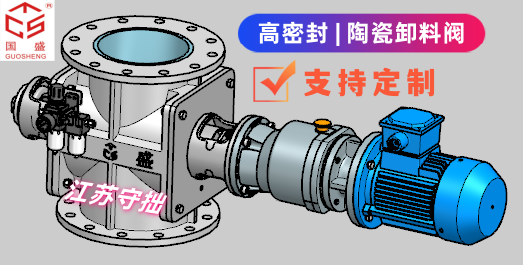

　　陶瓷星型旋轉閥：

　　主要結構：外殼金屬;物料接(jie)觸(chu)部(bu)分(fen)：內襯陶瓷(也可全陶瓷、尼龍、四(si)氟、特氟龍等)。

　　主要用于輸送鋰(li)電池(chi)正極材料、磷酸(suan)鐵(tie)鋰(li)、三元材料、化工(gong)、制藥等。

　　特點：耐高溫、耐磨、使用壽命長。

　　技術研發于2015年(nian)，批量(liang)生產(chan)于2017年(nian)，2020年(nian)更新(xin)第3代陶(tao)瓷星(xing)型旋轉閥(fa)，目前有陶(tao)瓷星(xing)型旋轉閥(fa)專利。

　　江蘇守拙主要定制高端旋轉閥：超級工程/重大項目/科研項目定制旋轉閥。【電話/微信咨詢：陳經理18068546632】

　　部分選用陶瓷旋轉閥案例：

　　磷酸鐵鋰二期，輔料(liao)投料(liao)旋(xuan)轉閥(fa)：輔料(liao)密(mi)度：0.6g/cm3，1.材(cai)質：閥(fa)體304.內(nei)表面(mian)噴(pen)(pen)涂陶瓷(ci)、閥(fa)芯整體使(shi)用聚(ju)甲(jia)醛POM材(cai)質，配(pei)(pei)有氣(qi)(qi)(qi)密(mi)封;2.電機：變頻(pin)調節;3.配(pei)(pei)套(tao)(tao)氣(qi)(qi)(qi)源(yuan)(yuan)(yuan)電磁(ci)閥(fa)、氣(qi)(qi)(qi)源(yuan)(yuan)(yuan)軟(ruan)管(guan)。下料(liao)速(su)度：2t/h。碳源(yuan)(yuan)(yuan)1：0.8g/cm3，碳源(yuan)(yuan)(yuan)2：0.45g/cm3，碳源(yuan)(yuan)(yuan)3：0.5g/cm3，材(cai)質閥(fa)體304.內(nei)表面(mian)噴(pen)(pen)涂陶瓷(ci)、閥(fa)芯整體使(shi)用聚(ju)甲(jia)醛POM材(cai)質，配(pei)(pei)有氣(qi)(qi)(qi)密(mi)封;電機：變頻(pin)調節;配(pei)(pei)套(tao)(tao)氣(qi)(qi)(qi)源(yuan)(yuan)(yuan)電磁(ci)閥(fa)、氣(qi)(qi)(qi)源(yuan)(yuan)(yuan)軟(ruan)管(guan)。下料(liao)速(su)度：4t/h。

　　輸送物料鋰電磷酸鐵鋰，溫度130℃左右;輸送量(liang) 19.2m3/h，電機功(gong)率:1.5Kw，旋轉(zhuan)閥(fa)尺寸:DN300.H400mm,16L/轉(zhuan)，40轉(zhuan)/分(fen)鐘，材質304不(bu)銹鋼(gang)，8葉片轉(zhuan)子、內腔陶瓷(ci)閥(fa)芯，M12*8法蘭孔連接，配備變頻(pin)電機。

　　出口(kou)用，輸送(song)物料(liao)三元(yuan)正極(ji)，要求旋轉閥(fa)支(zhi)持快拆清理，全面禁(jin)銅(tong)鋅，物料(liao)接觸陶瓷材質。閥(fa)門對密封性要求極(ji)高，粉塵泄漏(lou)量(liang)不大于0.01mg/m3，產能2~3t/h。

　　DN200陶(tao)瓷星型旋(xuan)轉(zhuan)閥，主(zhu)體(ti)材質為(wei)SUS304.閥體(ti)及葉片表面(mian)冷(leng)噴(pen)涂陶(tao)瓷0.3m;兩邊(bian)端(duan)蓋板表面(mian)冷(leng)噴(pen)涂陶(tao)瓷0.3mm;進出口為(wei)HG/T20592 PN10標(biao)準(zhun)DN200平面(mian)法(fa)蘭;配(pei)變頻減速(su)電機，功率約0.75kw，能效等(deng)級(ji)(ji)IE4.防(fang)護(hu)等(deng)級(ji)(ji)IP55.絕緣(yuan)等(deng)級(ji)(ji)F，脂潤滑(hua):軸封方式為(wei)盤根+氣密(mi)封，軸承材質為(wei)SUS304;物料接觸(chu)及裸(luo)露部分(fen)禁銅鐵鋅。

　　物料：磷酸鐵鋰/石墨(mo)類(lei)，物料堆積比重0.3~1.2g/㎝3，法蘭(lan)連接DN200.流量要求：≥3t/h，材質SUS304內襯陶瓷，設備要求禁銅禁鋅，卸料閥(關(guan)風器(qi))高度≤300mm，工況：上端(duan)常壓，下端(duan)負(fu)壓，防爆ExdllBT4.

　　物料(liao)：多晶硅粉，粉體，帶細小顆粒(li)(li)，DN100.容積0.6L/轉，工作溫度60-100℃，物料(liao)粒(li)(li)度：20-300μm，物料(liao)處(chu)理量400-500Kg，輸(shu)送(song)壓力≥0.5Mpa，回(hui)轉閥填(tian)充系數0.6-0.7.回(hui)轉閥轉速29R/min，端蓋材質304.轉子(zi)材質304.外殼材質304(內襯陶瓷(ci))，端蓋形式：外置軸承式端蓋氣(qi)密封(feng)，主(zhu)軸密閉做成硬密封(feng)，電機(ji)功率1.5kw-380-50hz，齒輪減速機(ji)國茂GKAF-59-48.89.

　　稀土精深加工(gong)粉(fen)末：陶瓷(ci)星型卸料閥，卸料介質(zhi)(zhi)：粉(fen)末;尺寸(cun)DN150.電機功率0.75kw，轉速33 r/min，閥座/閥瓣材質(zhi)(zhi)：陶瓷(ci)，輸送量>30L/h。密(mi)封(feng)：具備良(liang)好的軸(zhou)密(mi)封(feng)，不允(yun)許粉(fen)塵進入軸(zhou)承，造成損壞，也污染物(wu)料。驅動方式：馬達直連驅動，兩(liang)端面法蘭距離：<310mm。

　　物料(liao)(liao)：氧化(hua)鋁粉，氣力輸送系統(tong)配套不銹(xiu)鋼旋轉閥(fa)內(nei)襯陶瓷(ci)，要求耐磨密封鎖氣，DN300.一小時(shi)卸(xie)料(liao)(liao)量不小于(yu)8噸，密度(du)1.2~1.3.

　　物料(liao)：鋰電(dian)粉料(liao)，陶瓷星型給料(liao)閥，微正壓狀(zhuang)態使用，口徑DN300.葉輪(lun)(lun)與內壁單邊間隙30絲，葉輪(lun)(lun)和內壁是陶瓷。

　　鋰(li)鹽生產線，規格：600*600; 能(neng)力：130m3/h(變頻)物(wu)料溫(wen)度：≤100 ℃，閥(fa)體耐熱，閥(fa)體材料：不銹鋼(gang)+內襯(chen)陶瓷，介質：細焙料(Li2O、Al2O3、SiO2)，電機(ji)品(pin)牌：皖南(nan)電機(ji)、臥龍(long)電氣電機(ji)。

　　化(hua)工廠用，物(wu)料(liao)類似食鹽結晶顆粒，DN200出料(liao)口，防爆電機，YBFBx5(Ex db ⅢC T5 Gb)防爆等(deng)級，外304不銹鋼，與物(wu)料(liao)接觸內襯陶瓷。

       《掃二維碼-添加 陳經理 微信-咨詢陶(tao)瓷旋轉閥》

　　Rare earth deep-processing powder: ceramic star-shaped discharge valve, discharge medium: powder; size DN150. motor power 0.75kw, speed 33 r/min, valve seat/disc material: ceramic, conveying capacity >30L/h. Sealing: good shaft sealing, no dust allowed to enter the bearing, causing damage and contaminating the material. Drive mode: direct motor drive, distance between the two end flanges: <310mm.

　　Materials: Alumina powder, stainless steel rotary valve with ceramic lining for pneumatic conveying system, requiring wear-resistant sealing and air locking, DN300. with an unloading capacity of not less than 8 tons per hour, and a density of 1.2~1.3.

　　Materials: lithium battery powder, ceramic star-shaped feeding valve, used under micro-positive pressure, with a diameter of DN300. a single-sided clearance of 30 threads between the impeller and the inner wall, and both the impeller and the inner wall are made of ceramic.

　　Lithium salt production line, specifications: 600*600; capacity: 130m3/h (variable frequency); material temperature: ≤100 ℃, valve body heat-resistant; valve body material: stainless steel + ceramic lining; medium: fine calcine (Li2O, Al2O3. SiO2); motor brands: Wannan Electric Motor, Wolong Electric Motor.

　　For use in chemical plants, the material resembles salt crystal particles. It features a DN200 discharge outlet, an explosion-proof motor, and an explosion-proof rating of YBFBx5 (Ex db ⅢC T5 Gb). The exterior is made of 304 stainless steel, while the interior lining that comes into contact with the material is made of ceramic.
